PUMP – TYPE GB 90 15/AE
Single cell centrifuges.
- Suction: 1xDN100 equipped with a 1/2 rear connection with filter + chain plug.
- Discharge: 2 to 5 poppet valves or ¼ turn valves equipped with ½ DSP DN65 and/or DN100 fittings with chain plugs.
- Primer: equipped with an electric motor and a vane vacuum pump, designed to operate without water or oil.
- Option: water ring primer.
The motor pump is fitted with electronic pump pressure regulation.

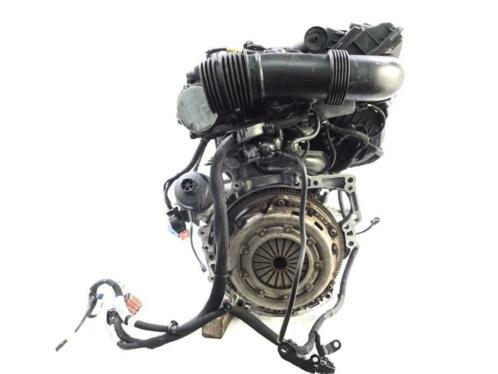

GASOLINE ENGINE
- Electronic injection.
- Power: 115 kw at 6000 rpm – 1598 cm3.
- Cooling: self-contained in closed circuit, by radiator equipped with two fan motors.
- Electronic ignition – Battery switch, “punch” type emergency stop.
- Fuel tank made of stainless steel – autonomy 2 hours.
The motor pump is fitted with electronic pump pressure regulation.
DIESEL ENGINE

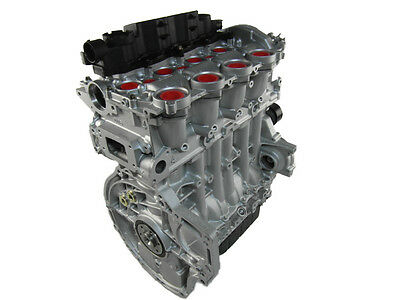

PEUGEOT engine – Type DV6 TD
- Electronic injection.
- Power: 68 kw at 6000 rpm – 1560 cm3.
- Cooling: self-contained in closed circuit, by radiator equipped with two fan motors.
- Electronic ignition – Battery switch, “punch” type emergency stop.
- Fuel tank made of stainless steel – autonomy 2 hours.
